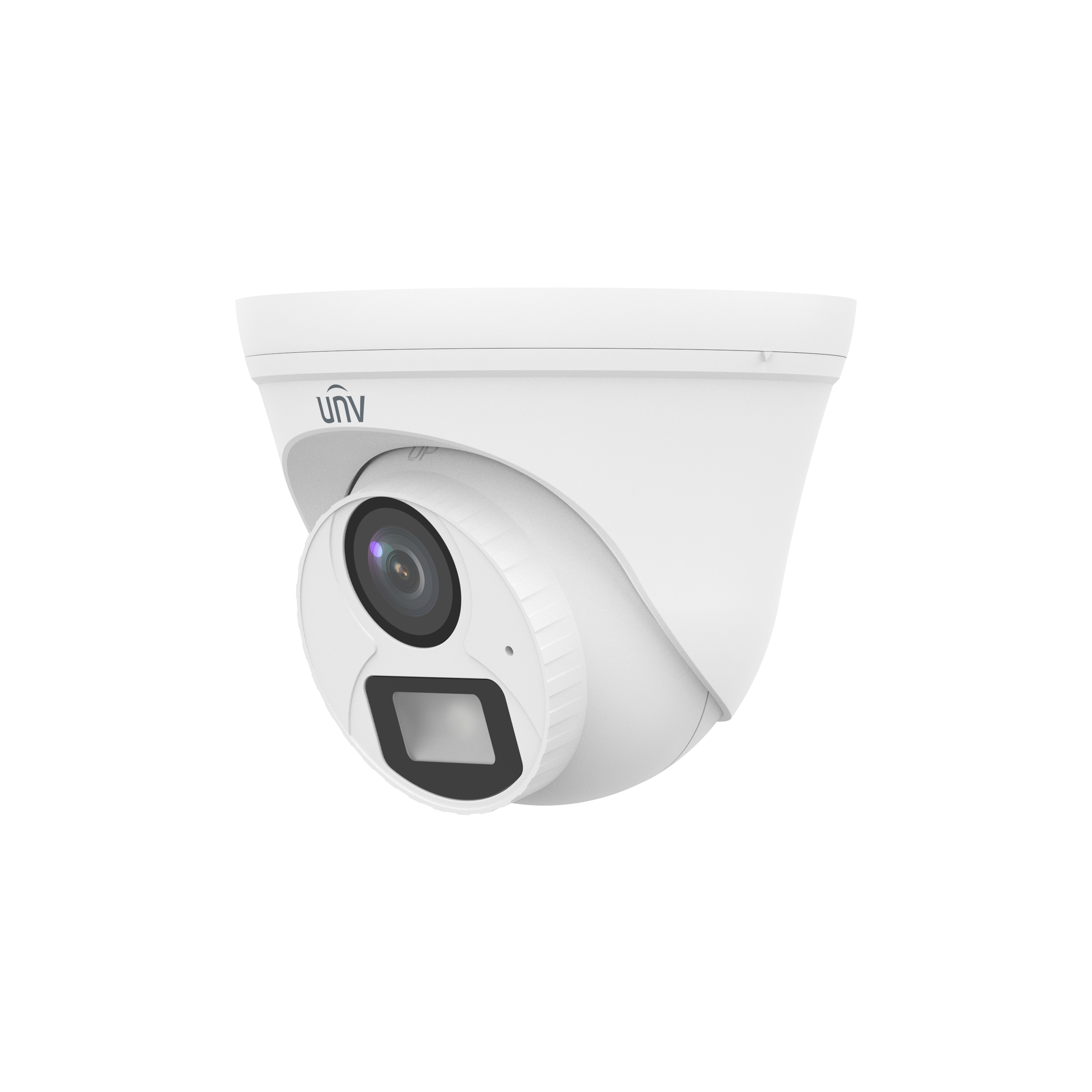

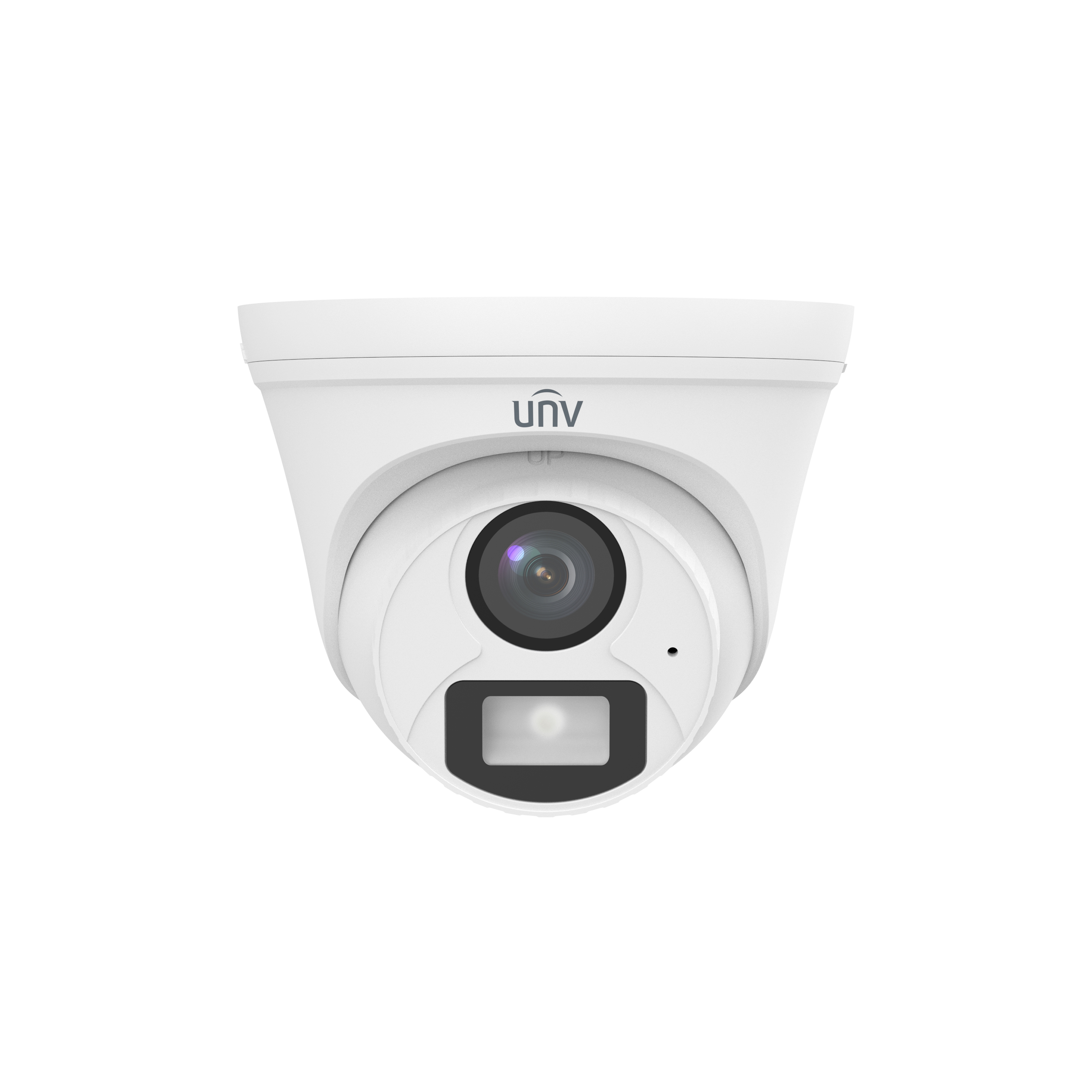

UNV HDTVI CAM UAC-T115-AF28-W
UNV
46.89 ₼
5MP ColorHunter Fixed Warm Light Turret Analog Camera
- Kateqoriya: Müşahidə sistemləri > Analoq Kameralar
Oxşar məhsullar
HDTVI CAM UNV UAC-T132-F28
25.60 ₼
HDTVI CAM UNV UAC-T112-F28W
36.50 ₼
|
|
UAC-T115-AF28-W |
UAC-T115-AF40-W |
||||||
Camera |
||||||||
Max Resolution |
5 MP |
|||||||
Sensor Size |
1/2.7" CMOS |
|||||||
Min. Illumination |
0.01 lux (F1.6, AGC ON)0 lux (white light on) |
|||||||
Lens |
||||||||
Focus |
2.8 mm |
4.0 mm |
||||||
Lens Mount |
M12 |
|||||||
Angle of View (H) |
110.0° |
90.0° |
||||||
Angle of View (V) |
57.0° |
48.0° |
||||||
Angle of View (D) |
130.0° |
109.1° |
||||||
Illuminator |
||||||||
Illuminator Number |
One white-light illuminator |
|||||||
Illumination Distance |
20m |
|||||||
Lifetime |
≥ 60000 hours |
|||||||
Video |
||||||||
Resolution |
5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)4MP: 2560(H)×1440(V)1080P: 1920(H)×1080(V) |
|||||||
Frame Rate |
TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fpsAHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fpsCVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fpsCVBS: PAL, NTSC |
|||||||
Shutter Time |
PAL: 1/25s-1/50000s，NTSC: 1/30s-1/50000s |
|||||||
Image |
||||||||
Exposure Mode |
Four modes: Global (default), BLC, HLC, DWDR |
|||||||
Day/Night |
24/7 color images |
|||||||
Digital Noise Reduction |
2D |
|||||||
White Balance |
Two modes: Auto (default), Manual |
|||||||
WDR |
DWDR |
|||||||
Flip |
Supports 180°horizontal flip, 180°vertical flip |
|||||||
Digital Defog |
N/A |
|||||||
Audio |
||||||||
Built-in Mic |
Support |
|||||||
Camera Audio |
TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fpsCVI: 5MP@25fps, 4MP@25fps, 4MP@30fps |
|||||||
Interface |
||||||||
Power Interface |
5.5 mm Power Interface |
|||||||
Video Output |
BNC, supports TVI/AHD/CVI/CVBS |
|||||||
Operating Environment |
||||||||
Temperature |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
|||||||
Humidity |
≤ 95% RH (non-condensing) |
|||||||
Surge Protection |
4kV for power&4kV for video output interfaces |
|||||||
General |
||||||||
Power |
DC 12 V ± 25% |
|||||||
Power Consumption |
MAX 2.3W |
|||||||
Mount |
Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
|||||||
Dimensions |
Φ118mm*96mm (diameter*height) |
|||||||
Material |
Graphene + Plastic |
|||||||
Weight |
210g(0.46lb) |
|||||||
OSD Menu Language |
11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
|||||||
Certification |
||||||||
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) |
|||||||
Safety |
CE-LVD (EN 62368-1) |
|||||||
Environment |
CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
|||||||
Protection |
IP67 (IEC 60529) |
|||||||
