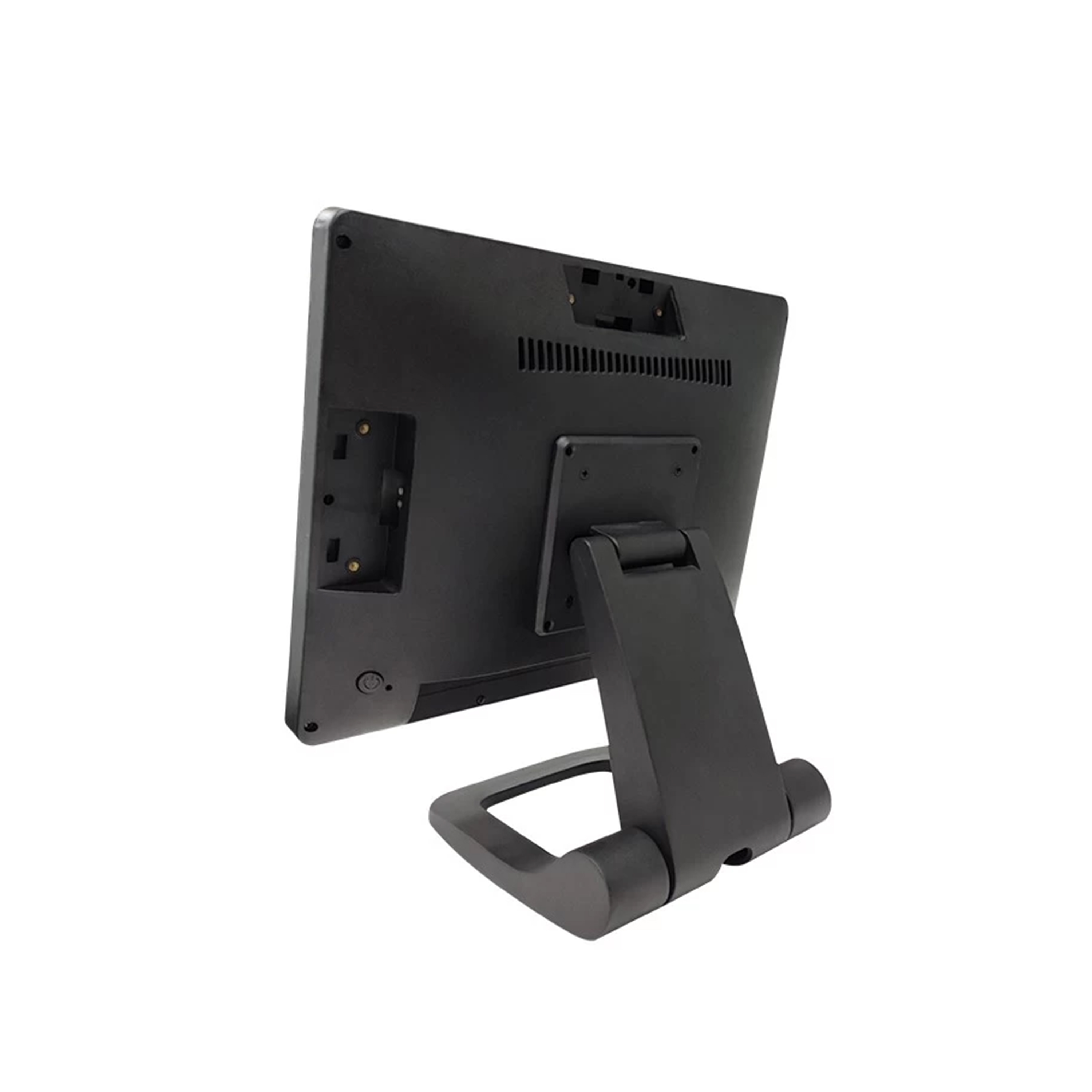

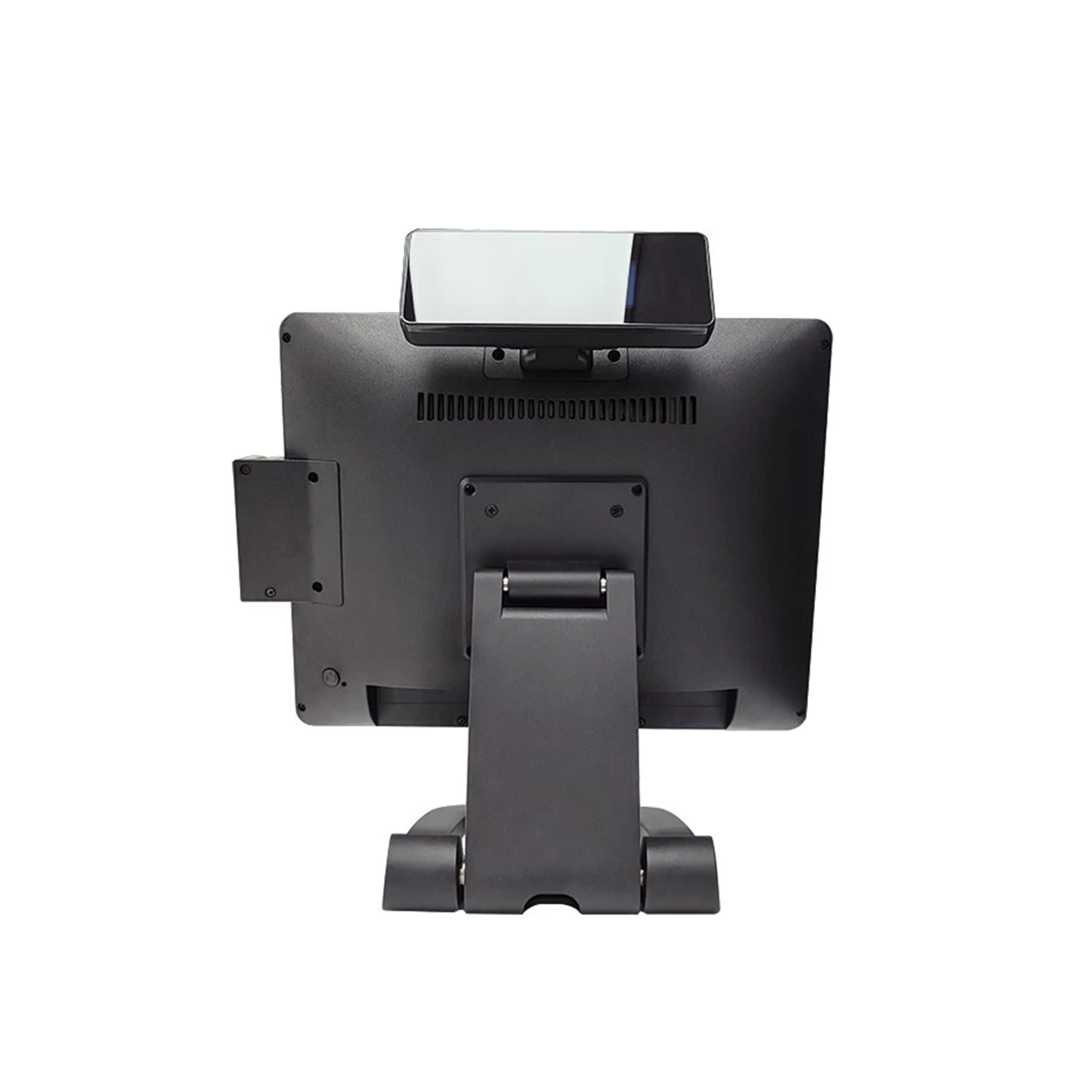

APC OCOM P1513 I5 8G RAM 128G SSD

Model

POS-1513P

Name

15.1 inch aluminium alloy touch POS terminal

Housing

Plastic shell body and aluminium alloy base

Color

whole black color machine

Display

Main screen

15.1 inch touch screen monitor

Resolution

1024*768

Brightness

250cd/m2

View angle

Horizon: 160; Vertical :150

Touch screen

Multi-point projected G+G capacitive touch

Sub-display

9.7 inch display W/o touch function

Customer display

2*20 VFD display mounted to back cover for option

Performance

Motherboard

Intel Celeron J4125, 2.0GHz  or intel core I3 / I5 4th  CPU for option

System Memory

1*SO-DIMM DDR4 slot, support2400mHZ ,4GB/8GB for option

Storage device

Msata SSD 64GB or higer, up to 256GB

Audio

On board Real Tek ALC662

LAN

10/100Mbs, Realtek RTL8111F Lan chip

built in Mini PCI-E slot, support embedded WIFI module

Operating System

Supporting Windows 10/11

Connectivity

External

I/O port(J4125)

Power button*1

12V DC in jack*1

LAN: RJ-45*1

USB*6

15PIN D-sub VGA *1

RS232*2

Line out*1, Mic in*1

Options

MSR

3-track MSR

Environment

Operating temperature

0 to 40 degrees centigrade

Storage temperature

-10 to 60 degrees centigrade

Working humidity

10%~80%    No condensation

Storage humidity

10%~90%    No condensation

Package

Weight

Net  5.5Kg, Gross 7.0Kg

Package with foam inside

440*290*425mm

Accessories

Power adapter

110-240V/50-60HZ AC power input ,DC12V/5A output adaptor

Power cable

Power cable plug compatible with USA /EU / UK etc and customized available

Other

Compliance

FCC Class A/CE Mark/LVD/CCC
