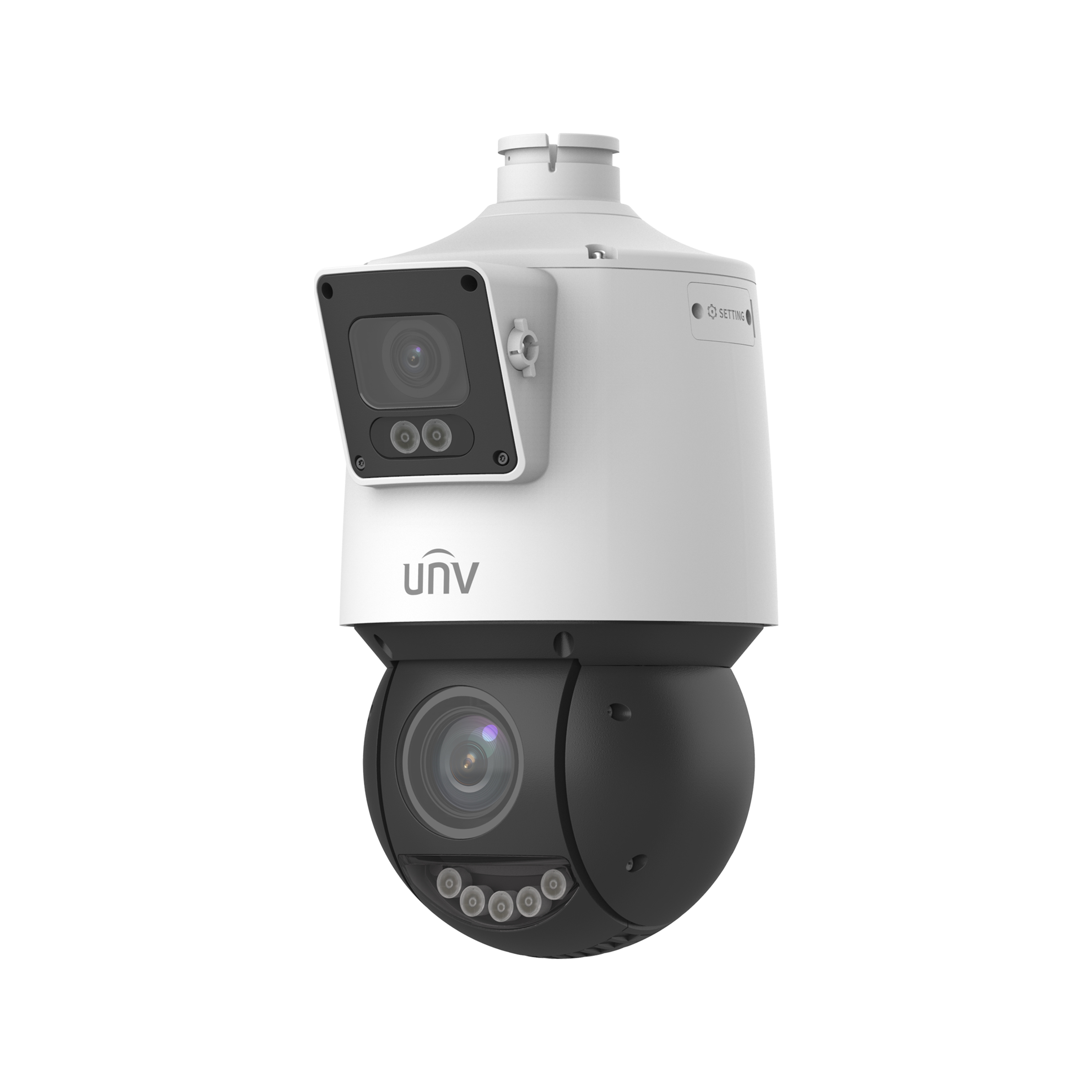

IP CAM UNIVIEW IPC94144SFW-X25-F40 C

Sensor

1/1.8" CMOS

1/2.7" CMOS

Min. Illumination

Color: 0.0005 lux (F1.0, AGC ON)

0 lux with IR

Color: 0.003 lux (F1.5, AGC ON)

0 lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 to 1/100000 s

Auto/Manual, 1 to 1/100000 s

WDR

120 dB

120 dB

S/N

>56 dB

>56 dB

Focal Length

4.0 mm

4.8 to 120 mm

Optical Zoom

N/A

25X

Iris

F1.0

F1.5 to F3.8

Field of View (H)

94.9°

55.46° ~ 3.09°

Field of View (V)

51.5°

32.94° ~ 1.73°

Field of View (D)

112.3°

68.22° ~ 3.65°

DORI Distance (Detect)

90.0m (295.3ft)

123.8m ~ 2475.0m (406.0ft ~ 8120.1ft)

DORI Distance (Observe)

36.0m (118.1ft)

49.5m ~ 990.0m (162.4ft ~ 3248.0ft)

DORI Distance (Recognize)

18.0m (59.1ft)

24.8m ~ 495.0m (81.2ft ~ 1624.0ft)

DORI Distance (Identify)

9.0m (29.5ft)

12.4m ~ 247.5m (40.6ft ~ 812.0ft)

Illumination Distance (Warm Light)

30 m (98.4 ft)

N/A

Illumination Distance (IR)

N/A

100 m (328.1 ft)

Wavelength

N/A

850 nm

Supplemental Light

Warm light

Warm light

Light On/Off Control

Auto/Manual

Auto/Manual

Pan Range

N/A

360°

Pan Speed

N/A

0.1°/s ~ 80°/s

Tilt Speed

N/A

0.1°/s ~ 80°/s

Tilt Range

18° ± 5°

–15° ~ 90°

Number of Presets (IPC)

N/A

1024

Number of Presets

N/A

1024

Preset Patrol

N/A

16 patrols, up to 64 presets for each patrol

Route Patrol

N/A

16 patrols, up to 32 actions for each patrol

Recorded Patrol

N/A

16 patrols, up to 128 actions for each patrol

Patrol Stay Time

15 s to 1800 s

15 s to 1800 s

Preset Image Freeze

N/A

N/A

Home Position

N/A

Support

Frame Rate

Main Stream: 4MP (2688×1520), Max 30fps;

Sub Stream: 720P (1280×720), Max 30fps;

Third Stream: D1 (720×576), Max 30fps;

Main Stream: 4MP (2688×1520), Max 30fps;

Sub Stream: 1080P (1920×1080), Max 30fps;

Third Stream: D1 (720×576), Max 30fps;

Privacy Mask

Up to 4 areas

24 areas, up to 4 areas per scene

Frame Rate-Main Stream

4MP (2688 × 1520) @ 25 fps (Default)

4MP (2688 × 1520), Max 30fps;

4MP (2560 × 1440), Max 30fps;

2MP (1920 × 1080), Max 30fps;

720P (1280 × 720), Max 30fps;

D1 (720 × 576), Max 30fps;

640 × 360, Max 30fps;

4MP (2688 × 1520) @ 25 fps (Default)

4MP (2688 × 1520), Max 30fps;

4MP (2560 × 1440), Max 30fps;

2MP (1920 × 1080), Max 30fps;

720P (1280 × 720), Max 30fps;

D1 (720 × 576), Max 30fps;

640 × 360, Max 30fps;

Frame Rate-Sub Stream

720P (1280 × 720), Max 30fps;

D1 (720 × 576), Max 30fps;

640 × 360, Max 30fps;

2MP (1920 × 1080), Max 30fps;

720P (1280 × 720), Max 30fps;

D1 (720 × 576), Max 30fps;

640 × 360, Max 30fps;

Frame Rate-Third Stream

D1 (720 × 576), Max 30fps;

640 × 360, Max 30fps;

2CIF (704 × 288) , Max 30fps;

CIF (352 × 288) , Max 30fps;

D1 (720 × 576), Max 30fps;

640 × 360, Max 30fps;

2CIF (704 × 288) , Max 30fps;

CIF (352 × 288) , Max 30fps;

Frame Rate Recommendation

2688 × 1520@30fps+720P@30fps+D1@16fps

2688 × 1520@30fps+720P@25fps+D1@30fps

2688 × 1520@25fps+720P@25fps+D1@25fps

2560 × 1440@30fps+720P@30fps+D1@30fps

2560 × 1440@30fps+720P@25fps+D1@30fps

2560 × 1440@25fps+720P@25fps+D1@25fps

1080P@30fps+720P@30fps+D1@30fps

1080P@25fps+720P@25fps+D1@25fps

2688 × 1520@30fps+1080P@30fps+D1@16fps

2688 × 1520@30fps+1080P@25fps+D1@30fps

2688 × 1520@25fps+1080P@25fps+D1@25fps

2560 × 1440@30fps+1080P@30fps+D1@30fps

2560 × 1440@30fps+1080P@25fps+D1@30fps

2560 × 1440@25fps+1080P@25fps+D1@25fps

1080P@30fps+1080P@30fps+D1@30fps

1080P@25fps+1080P@25fps+D1@25fps

Video Compression

Ultra 265, H.265, H.264, MJPEG

Ultra 265, H.265, H.264, MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

128 Kbps to 16 Mbps

U-code

Support

Support

ROI

Support

Support

Video Stream

Triple Streams

Triple Streams

OSD

Up to 8 OSDs

Up to 8 OSDs

Defog

Digital Defog

Digital Defog

White Balance

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

2D/3D DNR

Smart IR

Support

Support

Flip

Normal, Flip Vertical, Flip Horizontal, 180°

Normal, Flip Vertical, Flip Horizontal, 180°

HLC

Support

Support

BLC

Support

Support

Heatwave Reduction

Support

Support

People Counting

Support People Flow Counting and Crowd Density Monitoring

Support People Flow Counting and Crowd Density Monitoring

Linkage Function

Support. Triggered by fixed lens via smart intrusion prevention function to track target

N/A

Smart Intrusion Prevention

Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

Basic Detection

Motion Detection, Audio Detection, Tampering Alarm

Motion Detection, Audio Detection, Tampering Alarm

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output

Audio Compression

G.711U, G.711A

G.711U, G.711A

Audio Bitrate

128 Kbps

128 Kbps

Two-way Audio

Support

Support

Suppression

Support

Support

Sampling Rate

16 kHz

16 kHz

Edge Storage

Micro SD, up to 512 GB

Micro SD, up to 512 GB

Network Storage

ANR

ANR

Protocols

SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Up to 32 users. 3 user levels: administrator, common user and operator

Security

TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3

Client

EZStation, UNV-Link, UNV-Link Pro

EZStation, UNV-Link, UNV-Link Pro

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Audio I/O

1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]

1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]

Alarm I/O

2/1

2/1

Serial Port

1 channel RS485 interface

1 channel RS485 interface

Built-in Mic

N/A

N/A

Built-in Speaker

Support

Support

WIFI

N/A

N/A

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

N/A

EMC

CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1: 2014+A11: 2017)

UL (UL 62368-1, 2nd Ed , Issue Date: 2014-12-01)

CE LVD (EN 62368-1: 2014+A11: 2017)

UL (UL 62368-1, 2nd Ed , Issue Date: 2014-12-01)

Environment

CE-RoHS (2011/65/EU; (EU) 2015/863)

CE-RoHS (2011/65/EU; (EU) 2015/863)

Protection

IP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013)

IP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013)

Power

DC12V (±25%), PoE+ (IEEE 802.3at)

DC12V (±25%), PoE+ (IEEE 802.3at)

Power Consumption

MAX 24W

MAX 24W

Power Interface

Ø5.5 mm coaxial power plug

Ø5.5 mm coaxial power plug

Dimensions

304 x 195 x 163mm (12.0" x 7.7" x 6.4" ) (L x W x H)

304 x 195 x 163mm (12.0" x 7.7" x 6.4" ) (L x W x H)

Weight

2.27kg (5.00lb)

2.27kg (5.00lb)

Working Environment

-40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)

-40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection

4 KV

4 KV

Reset Button

Support

Support
