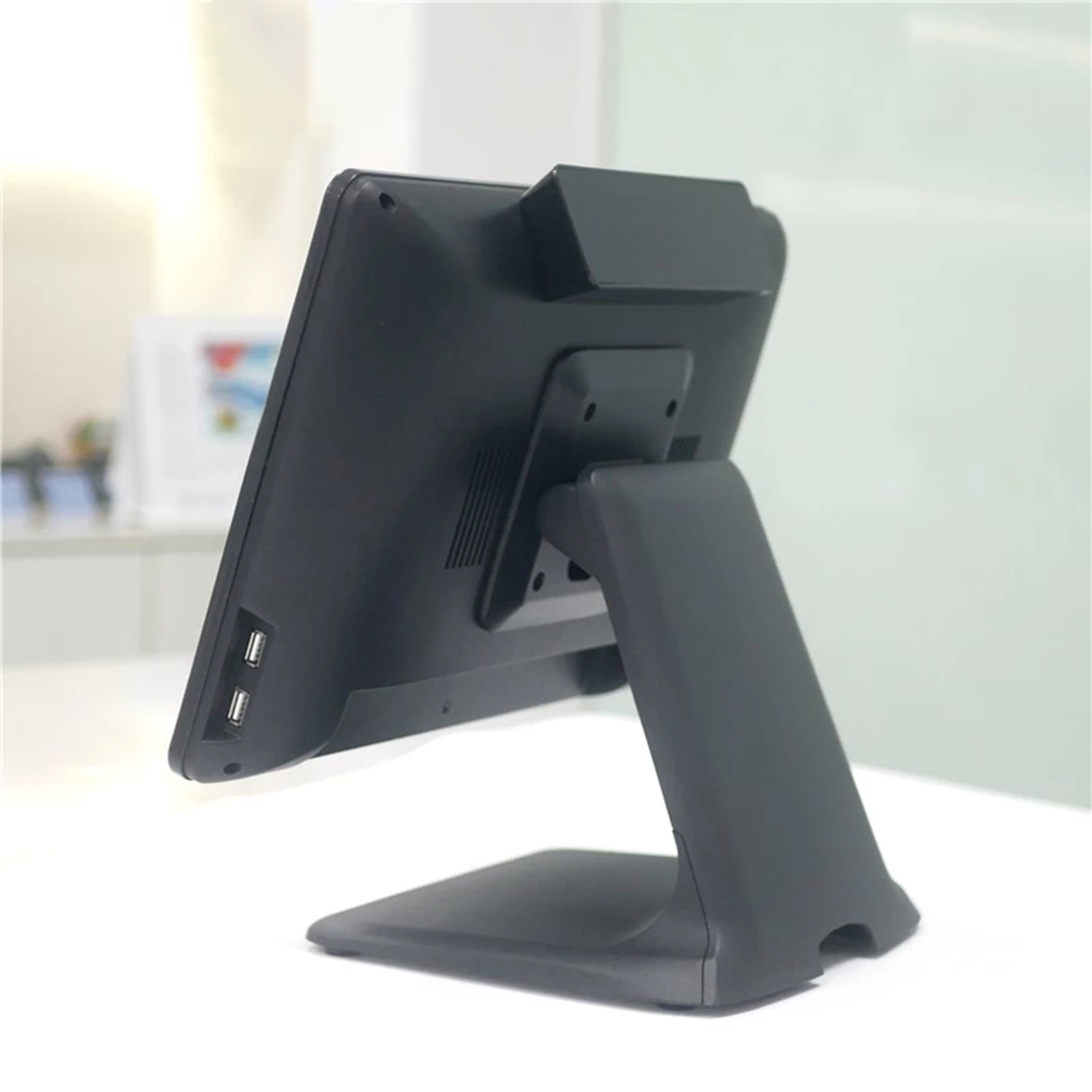

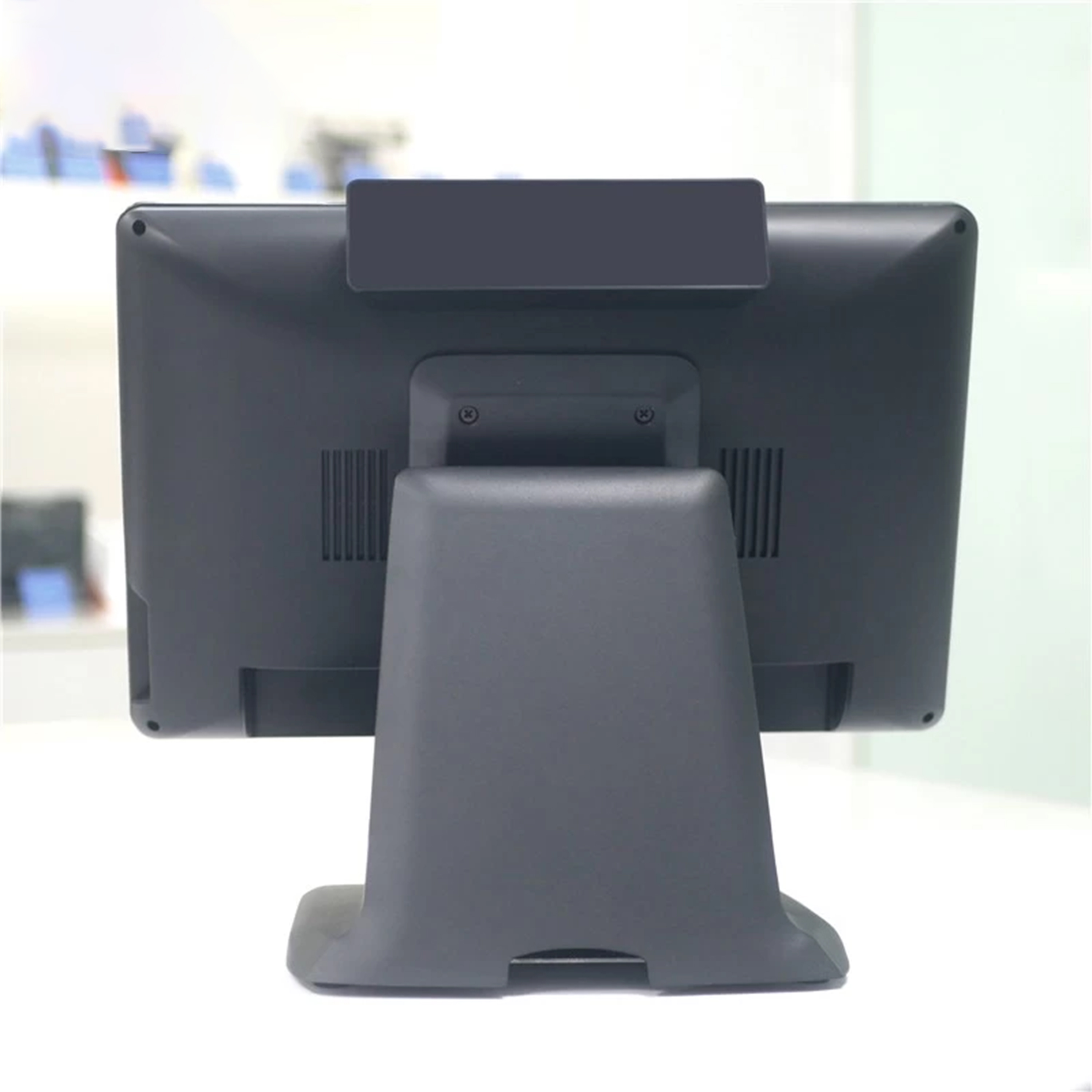

APC OCOM P1520 I5 4GB 128GB SSD

Model

POS-1520

Name

15.6 inch Windows touch screen pos terminal

Housing

ABS plastic machine body with aluminium alloy base

Color

whole black color machine body

Display

Main screen

15.6 inch touch screen monitor

Resoluiton

1366*768

Brightness

250cd/m²

View angle

Horizon: 150; Vertical :140

Touch screen

Multi-point projected G+G capacitive touch

Sub-display

13.3 inch display, W or W/o touch function, resolution 1366*768

Customer display

2*20 VFD or 2*20 LCD mounted to back cover for option

Performance

Motherboard

Intel Celeron Bay Trail J1900 2.0GHz,or,intel core I3 / I5 CPU for option

System Memory

1*SO-DIMM DDR3 slot, 4GB DDR3L /1333MHZ,8GB for option

Storage device

Msata SSD 64GB or higer, up to 256GB

Audio

On board Real Tek ALC662

LAN

10/100Mbs,Realtek RTL8111F Lan chip

built in Mini PCI-E slot,support embedded WIFI module

Operating System

Windows7/8/10, Embedded,WEPOS,Linux

Connectivity

External             I/O port(J1900)

Power switch*1,12V DC in Jack*1

LAN:RJ-45*1

USB *6

COM(RS232) * 1,Can be expanded more RS232 ports for option

VGA(15Pin D-sub)*1

Audio out*1,MIC in*1

Options

MSR

optional side MSR

Package

Weight

Net 4.0Kg, Gross 6.0Kg

Package with foam inside

460*295*415mm

Environment

Operating temperature

0 to 40 degrees centigrade

Storage temperature

-10 to 60 degrees centigrade

Working humidity

10%~80%    No condensation

Storage humidity

10%~90%    No condensation

Accessories

Power adapter

110-240V/50-60HZ AC power input ,DC12V/5A output adaptor

Power cable

Power cable plug compatible with USA /EU / UK etc
