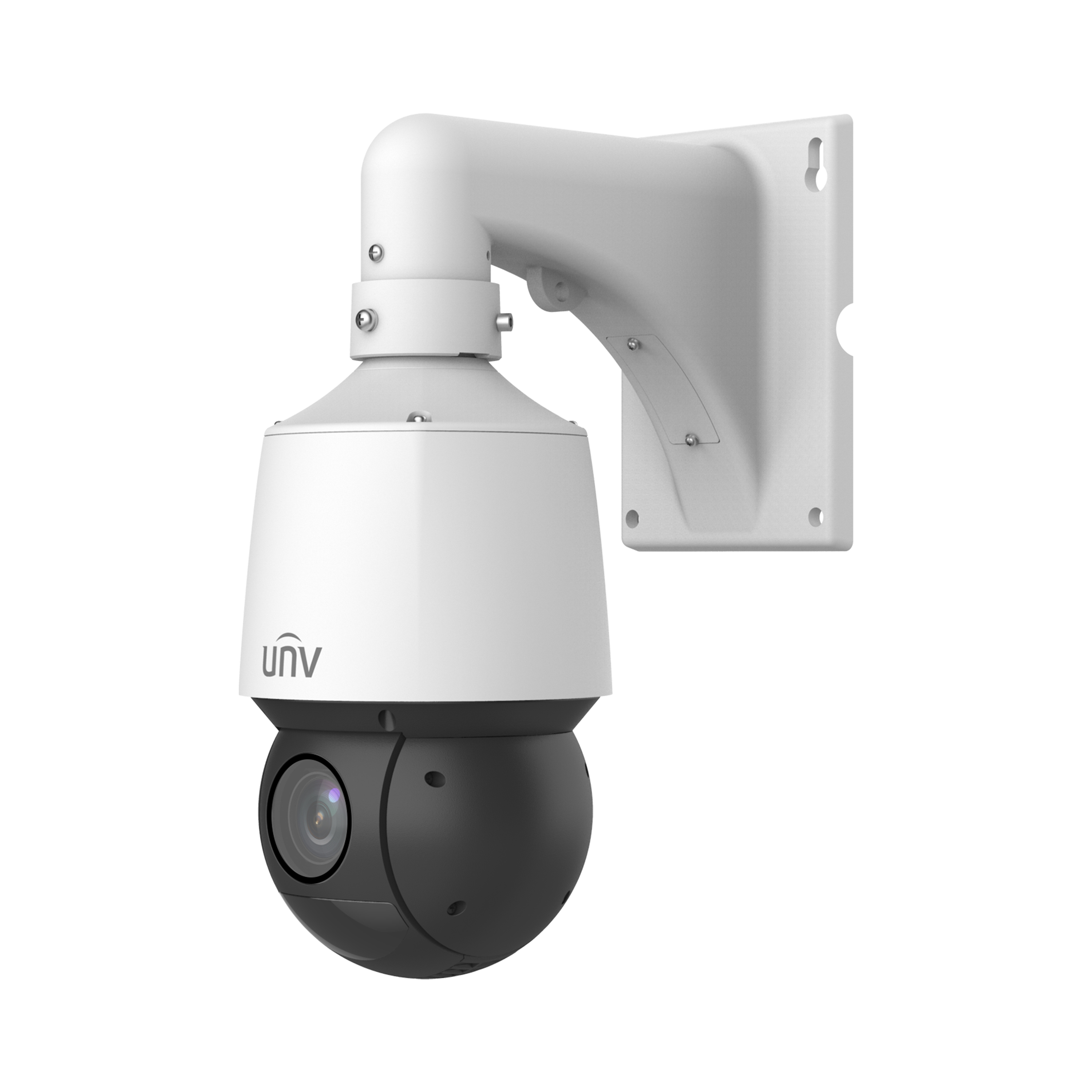

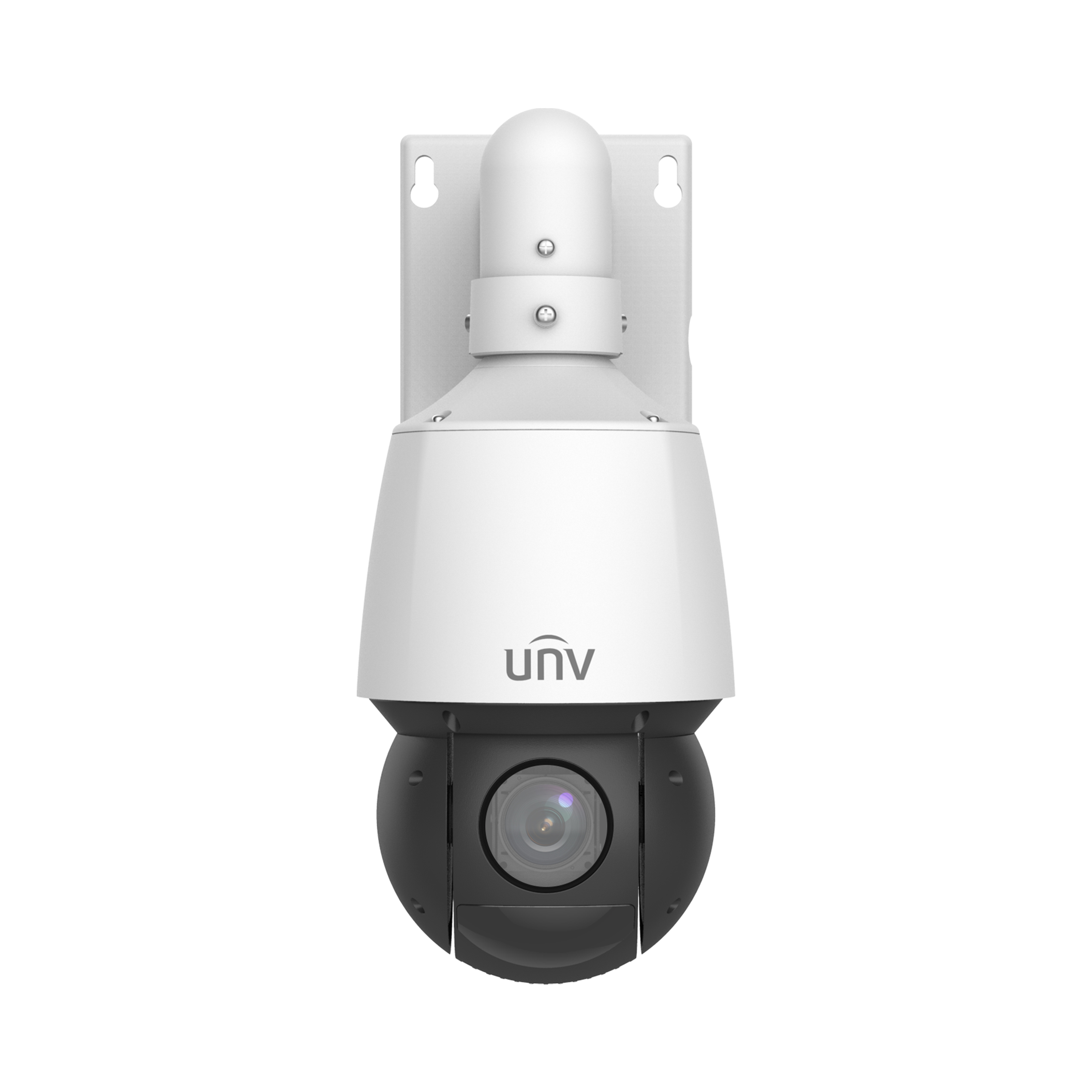

IP PTZ CAM IPC6412LR-X16-VG

Sensor

1/2.8" CMOS

Min. Illumination

Colour: 0.003 Lux (F1.7, AGC ON)

0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120 dB

S/N

>52 dB

Focal Length

5 to 80 mm

Optical Zoom

16X

Iris

F1.7 - F2.8

Field of View (H)

51.70° ~ 4.89°

Field of View (V)

30.49° ~ 2.75°

Field of View (D)

63.59° ~ 5.77°

DORI Distance (Lens)

5~80(mm)

DORI Distance (Detect)

77.6m~1241.4m(254.5ft~4072.8ft)

DORI Distance (Observe)

31.0m~496.6m(101.8ft~1629.1ft)

DORI Distance (Recognize)

15.5m~248.3m(50.9ft~814.6ft)

DORI Distance (Identify)

7.8m~124.1m(25.5ft~407.3ft)

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP(1920*1080),Max 30fps

Sub Stream: 720P(1280*720), Max 30fps

Third Stream: D1 (720*576), Max 30fps

Video Bit Rate

128 Kbps to 16 Mbps

U-code

Support

ROI

Support

Video Stream

Triple Streams

Privacy Mask

24 areas, up to 4 areas per scene

OSD

Up to 8 OSDs

Basic Detection

Motion Detection, Tampering Alarm, Object Removed, Object Left Behind

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR, NAS (NFS)

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Protocols

SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

Security

TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client

EZStation, UNV-Link, UNV-Link Pro

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Exception Detection

Object Removed, Object Left Behind

Auto Tracking

Support, target filtering: human, non-motor vehicle and vehicle

Multi-target Detection

N/A

Smart Intrusion Prevention

Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

People Counting

Support People Flow Counting and Crowd Density Monitoring

Route Patrol

16 patrols, up to 32 actions for each patrol

Recorded Patrol

16 patrols, up to 128 actions for each patrol

Number of Presets

1024

Preset Image Freeze

N/A

Preset Patrol

16 patrols, up to 64 presets for each patrol

Patrol Stay Time

15 s to 1800 s

Home Position

Support

Pan Range

360° (endless)

Pan Speed

–15° ~ 90° (auto reverse)

Tilt Range

0.1°/s ~ 80°/s

Tilt Speed

0.1°/s ~ 80°/s

White Balance

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

Flip

Normal, Flip Vertical, Flip Horizontal, 180°

HLC

Support

BLC

Support

Smart IR

Support

Defog

Digital Defog

Heatwave Reduction

Support

Audio I/O

N/A

WIFI

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

N/A

Built-in Speaker

N/A

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Illumination Distance (IR)

100 m (328.1 ft)

IR On/Off Control

Auto/Manual

Wavelength

850 nm

EMC

CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863)

Protection

IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

Power

DC12V(±25%,3A), PoE+(IEEE 802.3at)

Power Consumption

MAX 20W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø 162 x 293mm (Ø 6.4" x 11.5") (Ø x H)

Weight

1.79kg (3.95lb)

Working Environment

-40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection

6 KV

Reset Button

Support

Web Client Language

22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Heater

Support
