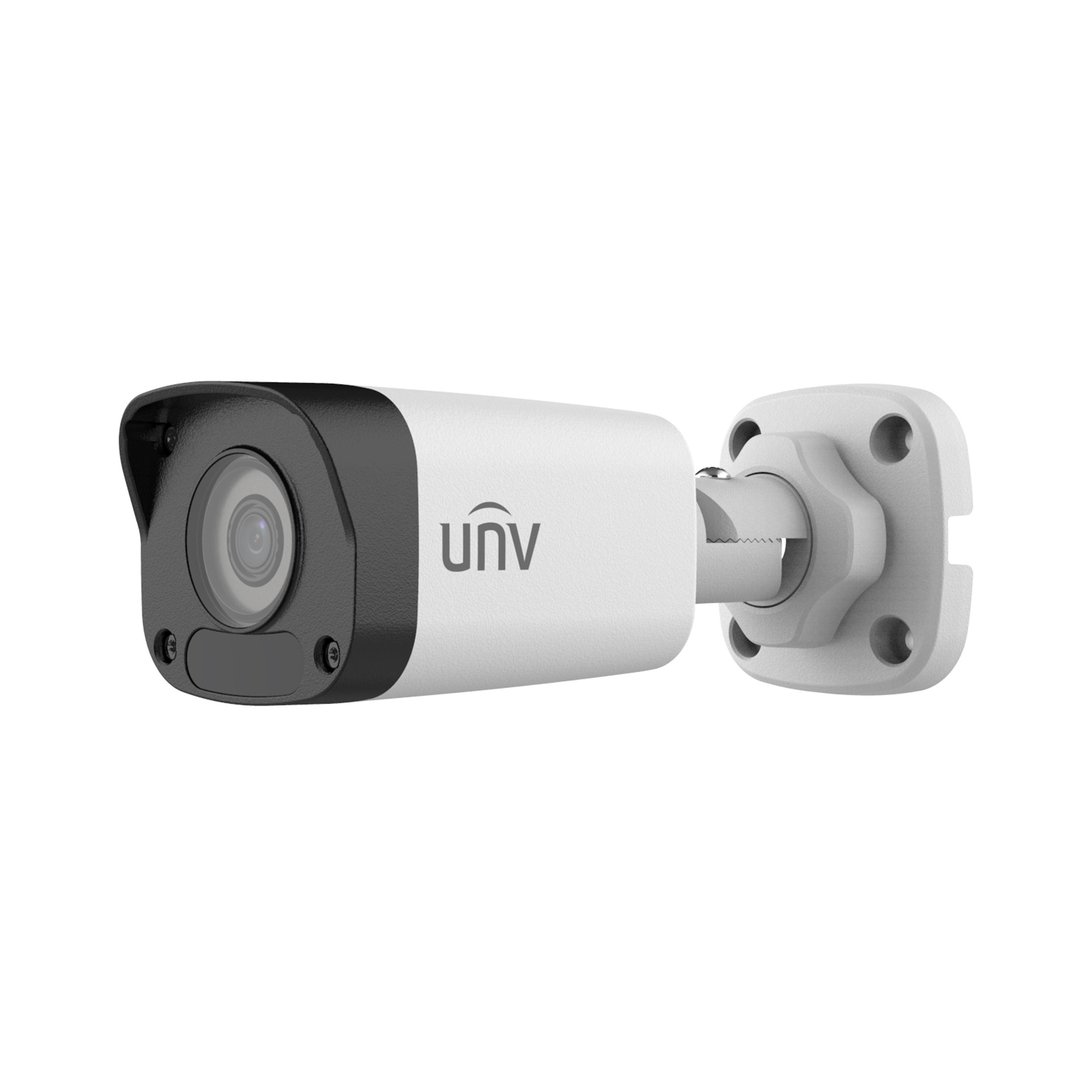

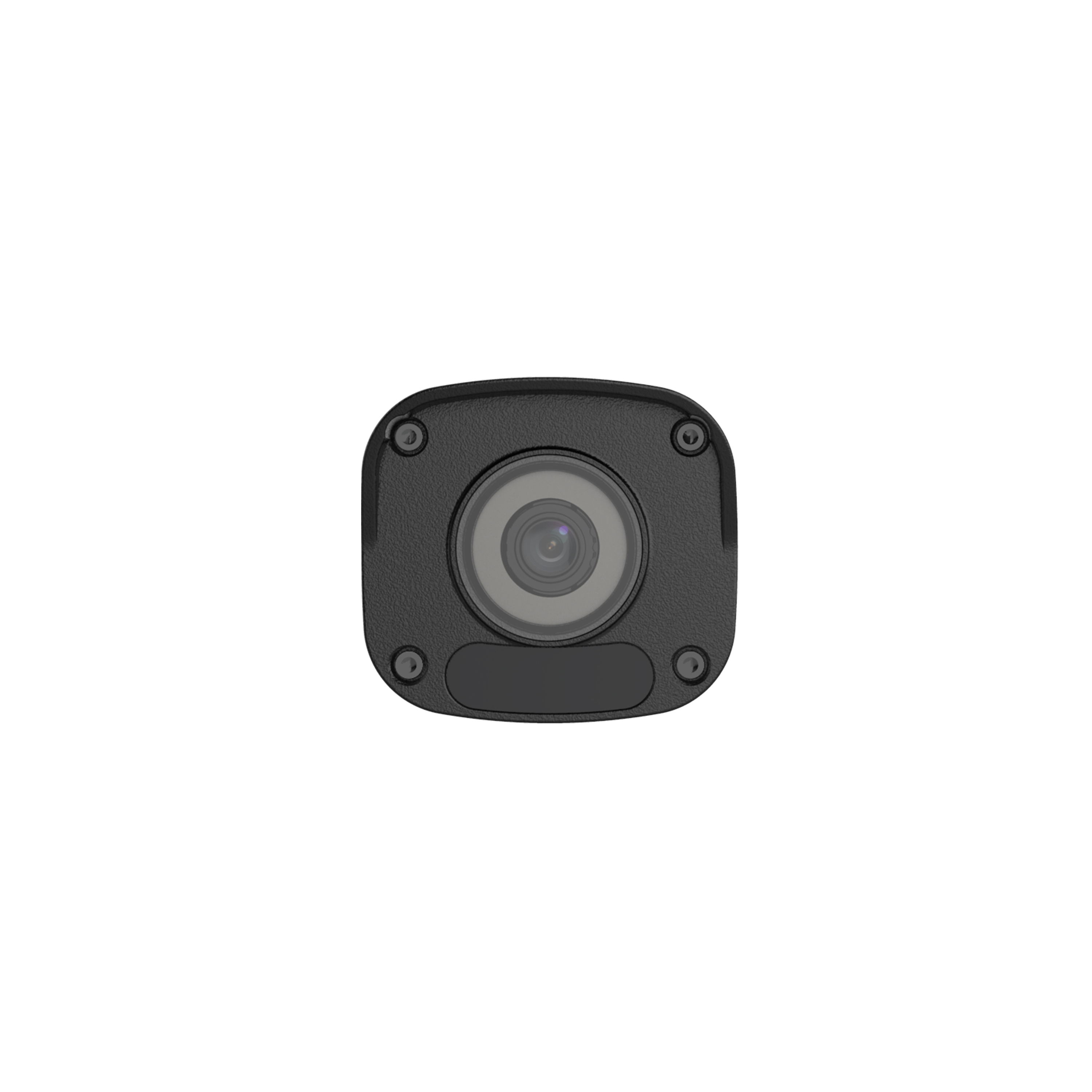

IP CAM UNIVIEW IPC2124LB-SF40KM-G

Max Resolution

4 MP

Sensor

1/3.0" CMOS

Min. Illumination

Colour: 0.01 lux (F2.1, AGC ON)

0 lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

S/N

>52 dB

WDR

DWDR

Focal Length

2.8 mm

4.0 mm

Iris Type

Fixed

Iris

F2.1

Field of View (H)

97.0°

79.0°

Field of View (V)

52.2°

42.3°

Field of View (D)

107.5°

85.1°

DORI Distance (Lens)

2.8mm

4.0mm

DORI Distance (Detect)

63.0m(206.7ft)

90.0m(295.3ft)

DORI Distance (Observe)

25.2m(82.7ft)

36.0m(118.1ft)

DORI Distance (Recognize)

12.6m(41.3ft)

18.0m(59.1ft)

DORI Distance (Identify)

6.3m(20.7ft)

9.0m(29.5ft)

Supplemental Light

IR

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850 nm

IR On/Off Control

Auto/Manual

Video Compression

Ultra 265, H.265, H.264

H.264 Code Profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (2560*1440), Max 25fps; 3MP(2304*1296), Max 25fps;2MP(1920*1080),Max 30fps

Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps

Video Bit Rate

128 Kbps to 6144 Kbps

U-code

Support (Main stream)

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Support

Video Stream

Dual Streams

White Balance

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal, Flip Vertical, Flip Horizontal, 180°

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Basic Detection

Motion Detection

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile T) ,

API, SDK

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Security

Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF

Client

UNV-Link, UNV-Link Pro, EZStation

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

N/A

Built-in Speaker

N/A

WIFI

N/A

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

CB (IEC 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption

Max 5.0W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

161 × 63 ×62mm (6.4” × 2.5” × 2.4”) (L x W x H)

Weight

0.31kg(0.68lb)

Material

Graphene + Plastic

Working Environment

-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment

-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection

4 KV

Reset Button

N/A
