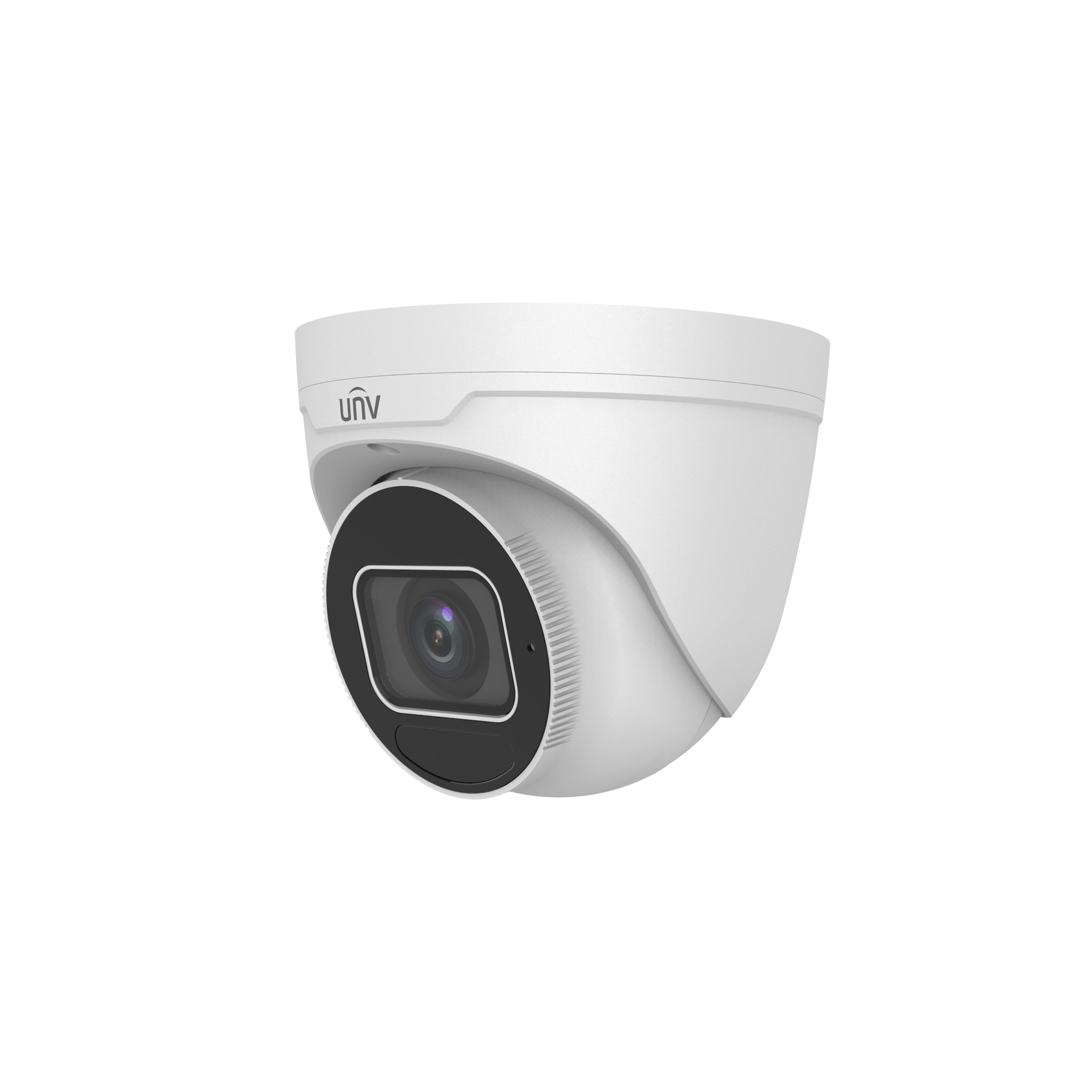

IP CAM UNIVIEW IPC3632SB-ADZK-I0

Max Resolution

2 MP

Sensor

1/2.8" CMOS

Min. Illumination

Colour:0.001 lux (F1.2, AGC ON)

0 lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°

S/N

>52 dB

WDR

120 dB

Focal Length

2.7 to 13.5 mm

Iris Type

Fixed

Iris

F1.2

Field of View (H)

107.4°~ 29.2°

Field of View (V)

54.2°~ 16.3°

Field of View (D)

111.0°~33.1°

Lens Type

Motorized

DORI Distance (Lens)

2.7mm, 13.5mm

DORI Distance (Detect)

41.9m(137.47ft)，209.5m(687.34ft)

DORI Distance (Observe)

16.8m(55.12ft)，83.8m(274.93ft)

DORI Distance (Recognize)

8.4m(27.56ft)，41.9m(137.47ft)

DORI Distance (Identify)

4.2m(13.78ft)，20.9m(68.57ft)

Supplemental Light

IR

Illumination Distance (IR)

40 m (131.2 ft)

IR On/Off Control

Auto/Manual

Wavelength

850 nm

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps

Video Bit Rate

128 Kbps to 16 Mbps

U-code

Support

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

ROI

Support

Video Stream

Triple Streams

Smart IR

Support

White Balance

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

Flip

Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Smart Intrusion Prevention

Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

People Counting

Support People Flow Counting and Crowd Density Monitoring

Statistical Analysis

N/A

Basic Detection

Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8 kHz

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR, NAS (NFS)

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M),

API, SDK

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Security

Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client

UNV-Link, UNV-Link Pro, EZStation

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

CB (IEC 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)

IK10 (IEC 62262)

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption

Max 7.0W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø129 x 110mm (Ø5.1” x 4.3”) (Ø x H)

Weight

0.69kg (1.52lb)

Material

Metal

Working Environment

-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment

-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection

6 KV

Reset Button

Support
