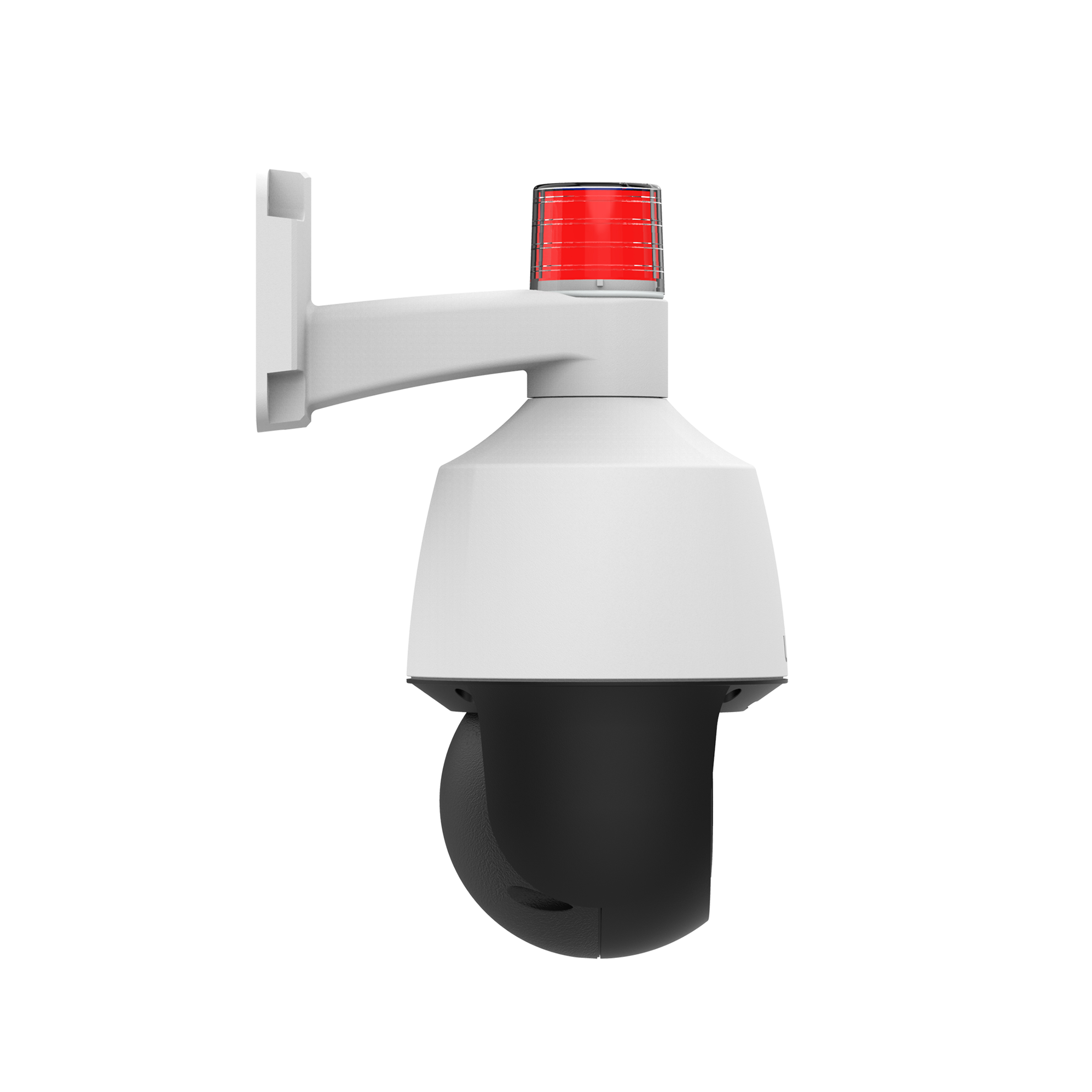

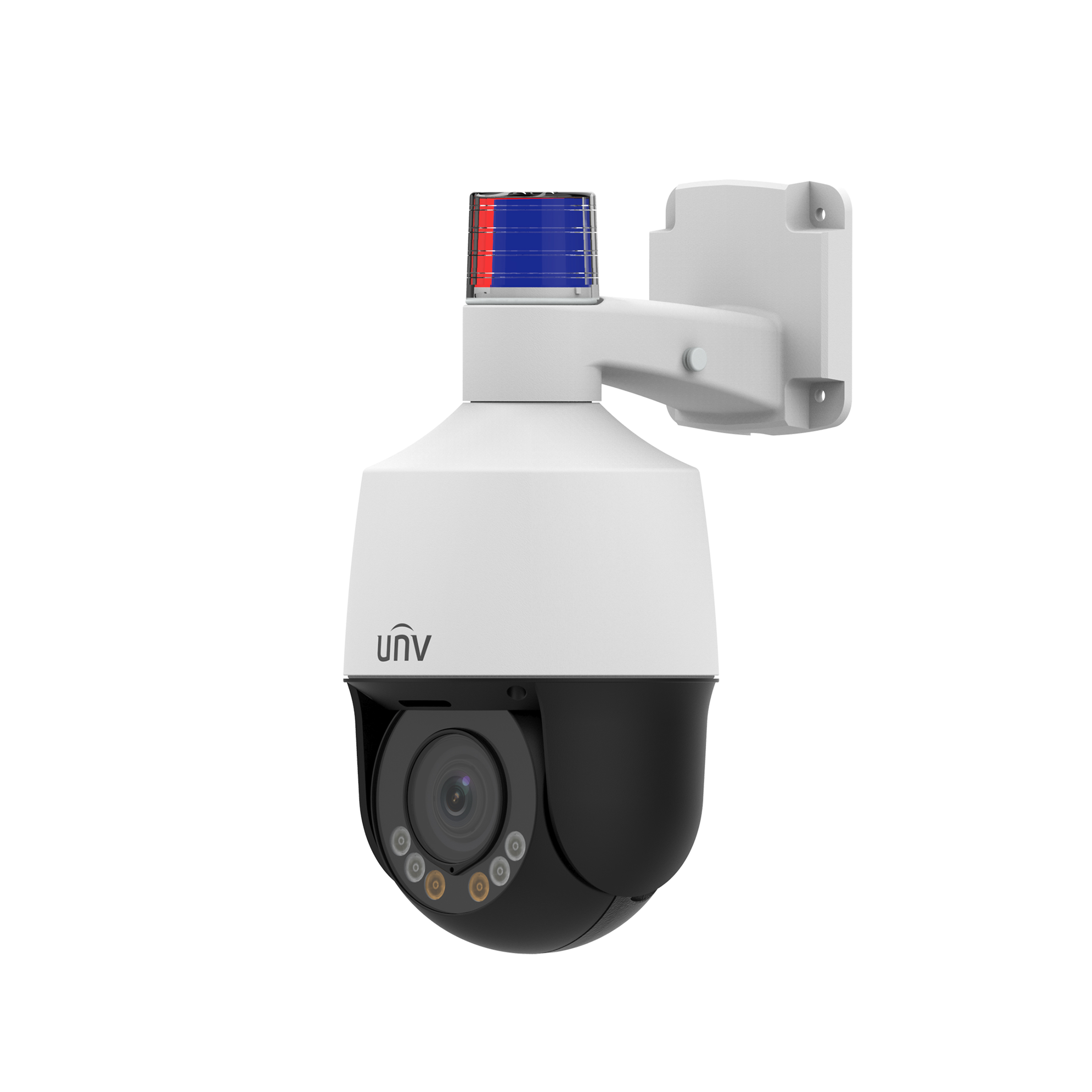

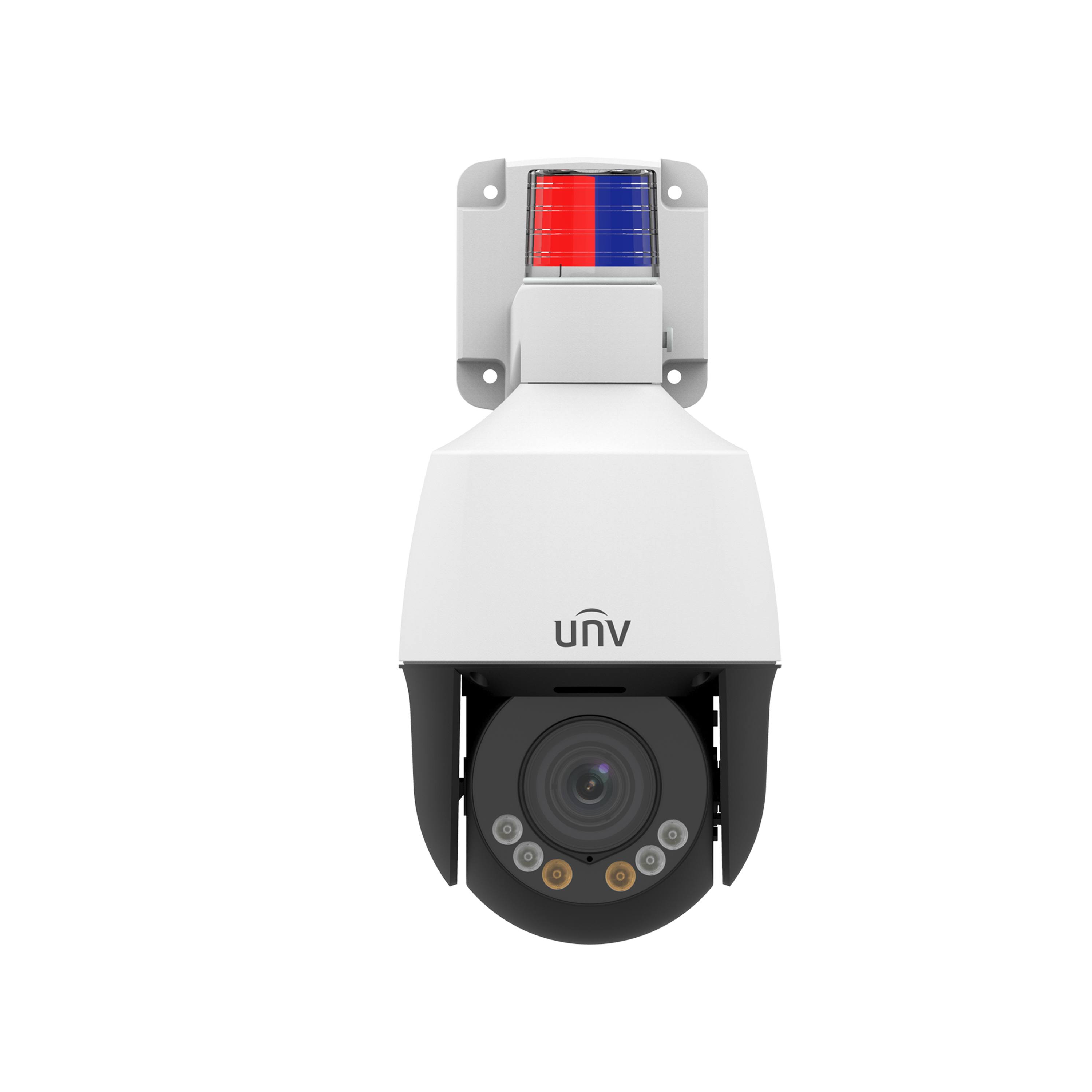

IP CAM UNIVIEW IPC6312LFW-AX4C-VG

Sensor

1/2.7" CMOS

Min. Illumination

Colour: 0.002Lux (F1.6, AGC ON)

0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 to 1/100000 s

WDR

120 dB

S/N

>52 dB

Focal Length

2.8 to 12 mm

Optical Zoom

4X

Iris

F1.6

Field of View (H)

105.2° ~ 29.32°

Field of View (V)

52.6° ~ 16.38°

Field of View (D)

108.7° ~ 33.3°

Illumination Distance (Warm Light)

10 m (32.8 ft)

Illumination Distance (IR)

50 m (164.0 ft)

Wavelength

850 nm

DORI Distance (Lens)

2.8~12(mm)

DORI Distance (Detect)

43.4m~186.2m(142.4ft~610.9ft)

DORI Distance (Observe)

17.4m~74.5m(57.1ft~244.4ft)

DORI Distance (Recognize)

8.7m~37.2m(28.5ft~122.1ft)

DORI Distance (Identify)

4.3m~18.6m(14.1ft~61.0ft)

Privacy Mask

Up to 4 areas

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps

Sub Stream: 720P (1280*720), Max 30fps

Third Stream: D1 (720*576), Max 30fps

Video Bit Rate

128 Kbps to 16 Mbps

ROI

Support

Video Stream

Triple Streams

OSD

Up to 8 OSDs

Pan Range

0° ~ 345°

Pan Speed

0.1°/s ~ 50°/s

Tilt Range

-10° ~ 110°

Tilt Speed

0.1°/s ~ 40°/s

Number of Presets

256

Preset Patrol

16 patrols, up to 64 presets for each patrol

Patrol Stay Time

120 s to 1800 s

Home Position

Support

Exception Detection

Object Removed, Object Left Behind, Scene Change, Defocus Detection

Auto Tracking

Support, target filtering: human only

People Counting

Support People Flow Counting and Crowd Density Monitoring

Smart Intrusion Prevention

Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

Defog

Digital Defog

White Balance

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal, Flip Vertical, Flip Horizontal, 180°

HLC

Support

BLC

Support

Heatwave Reduction

N/A

Basic Detection

Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio Compression

G.711U, G.711A

Two-way Audio

Support

Suppression

Support

Sampling Rate

16KHZ

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR, NAS (NFS)

Protocols

SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T),

API, SDK

Client

EZStation, UNV-Link, UNV-Link Pro

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Built-in Mic

Support

Built-in Speaker

Support

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

EMC

CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-ROHS (2011/65/EU;(EU)2015/863)

Protection

IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

Power

DC12V(±25%), PoE (IEEE 802.3af)

Power Consumption

MAX 15W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

133 x 185 x 276 mm (5.2" x 7.3" x 10.9") (L x W x H)

Weight

0.87 kg (1.92lb)

Working Environment

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection

2 KV

Reset Button

Support
