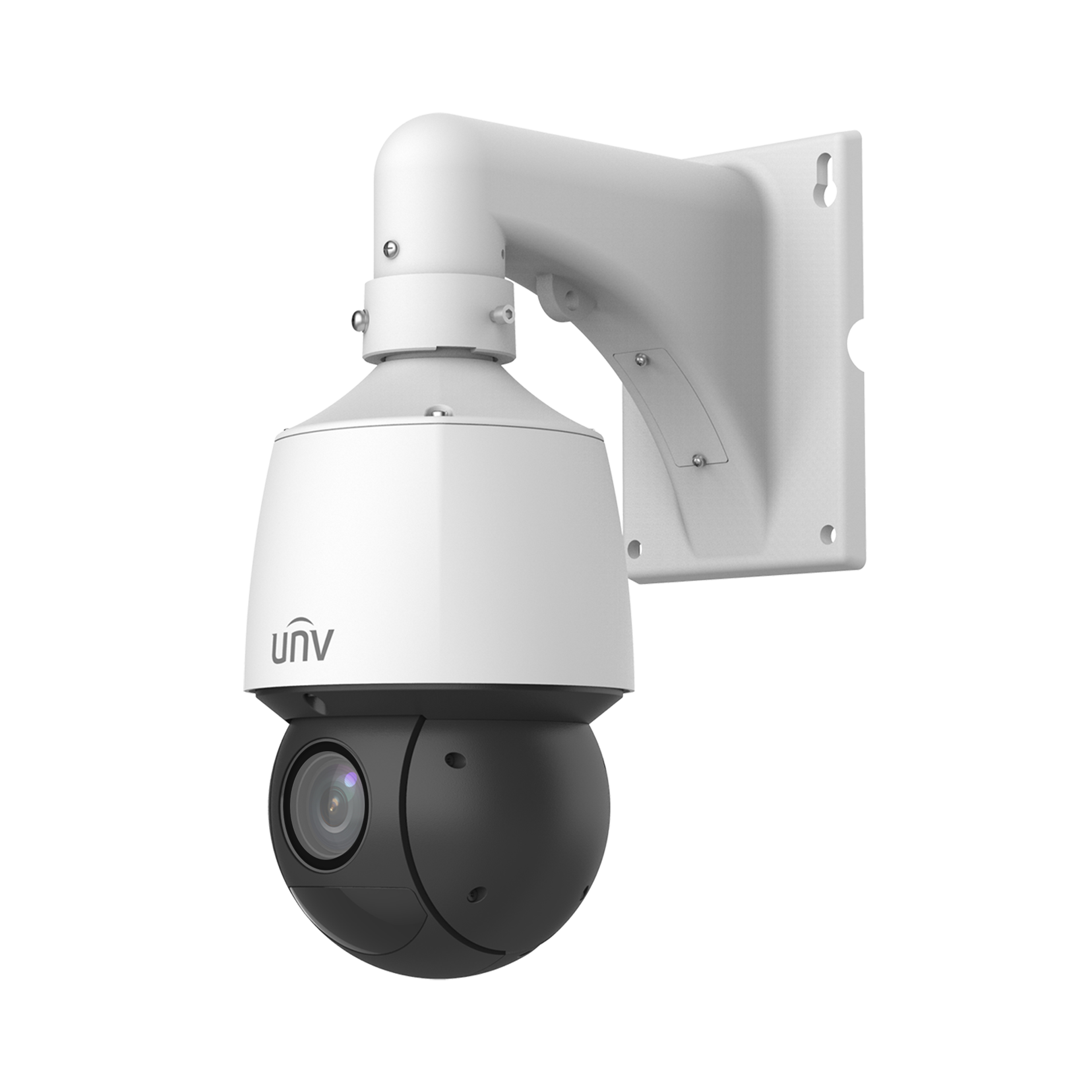

IP PTZ CAM IPC6422SR-X25-VF-B

Sensor

1/2.8" CMOS

Min. Illumination

Colour: 0.001 Lux (F1.5, AGC ON)

0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120 dB

S/N

>52 dB

Focal Length

5 to 125 mm

Digital Zoom

16X

Optical Zoom

25X

Iris

F1.5 to F4.0

Field of View (H)

54.37° ~ 2.68°

Field of View (V)

32.23° ~ 1.51°

Field of View (D)

66.88° ~ 3.16°

DORI Distance (Lens)

5~125(mm)

DORI Distance (Detect)

77.6m~1939.7m(254.5ft~6363.7ft)

DORI Distance (Observe)

31.0m~775.9m(101.8ft~2545.5ft)

DORI Distance (Recognize)

15.5m~387.9m(50.9ft~1272.7ft)

DORI Distance (Identify)

7.8m~194.0m(25.5ft~636.4ft)

Illumination Distance (IR)

100 m (328.1 ft)

IR On/Off Control

Auto/Manual

Wavelength

850 nm

Privacy Mask

24 areas, up to 4 areas per scene

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP(1920*1080),Max 60fps

Sub Stream: 2MP (1920*1080), Max 60fps

Third Stream: D1 (720*576), Max 60fps

Video Bit Rate

128 Kbps to 16 Mbps

U-code

Support

ROI

Support

Video Stream

Triple Streams

OSD

Up to 10 OSDs

Exception Detection

Object Removed, Object Left Behind

People Counting

Support People Flow Counting and Crowd Density Monitoring

Smart Intrusion Prevention

Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

Defog

Digital Defog

White Balance

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal, Flip Vertical, Flip Horizontal, 180°

HLC

Support

BLC

Support

Heatwave Reduction

Support

Basic Detection

Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output

Audio Compression

G.711U, G.711A

Audio Bitrate

128 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

16KHZ

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR, NAS (NFS)

Protocols

SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Security

TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client

EZStation, UNV-Link, UNV-Link Pro

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Number of Presets

1024

Preset Patrol

16 patrols, up to 64 presets for each patrol

Route Patrol

16 patrols, up to 32 actions for each patrol

Recorded Patrol

16 patrols, up to 128 actions for each patrol

Patrol Stay Time

15 s to 1800 s

Preset Image Freeze

Support

Home Position

Support

Pan Range

360° (endless)

Tilt Range

-15° ~ 90° (auto reverse)

Pan Speed

0.1°/s ~ 200°/s

Tilt Speed

0.1°/s ~ 120°/s

Audio I/O

1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]

Alarm I/O

2/1

Serial Port

1 * RS485

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

1 BNC (For debugging)

EMC

CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

IK10 (IEC 62262:2002)

Power

DC12V(±25%,3A), PoE+(IEEE 802.3at)

Power Consumption

MAX 21W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø 162 x 295mm (Ø 6.4" x 11.6") (Ø x H)

Weight

3.05kg(6.72lb)

Working Environment

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection

6 KV

Reset Button

Support

Web Client Language

22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
