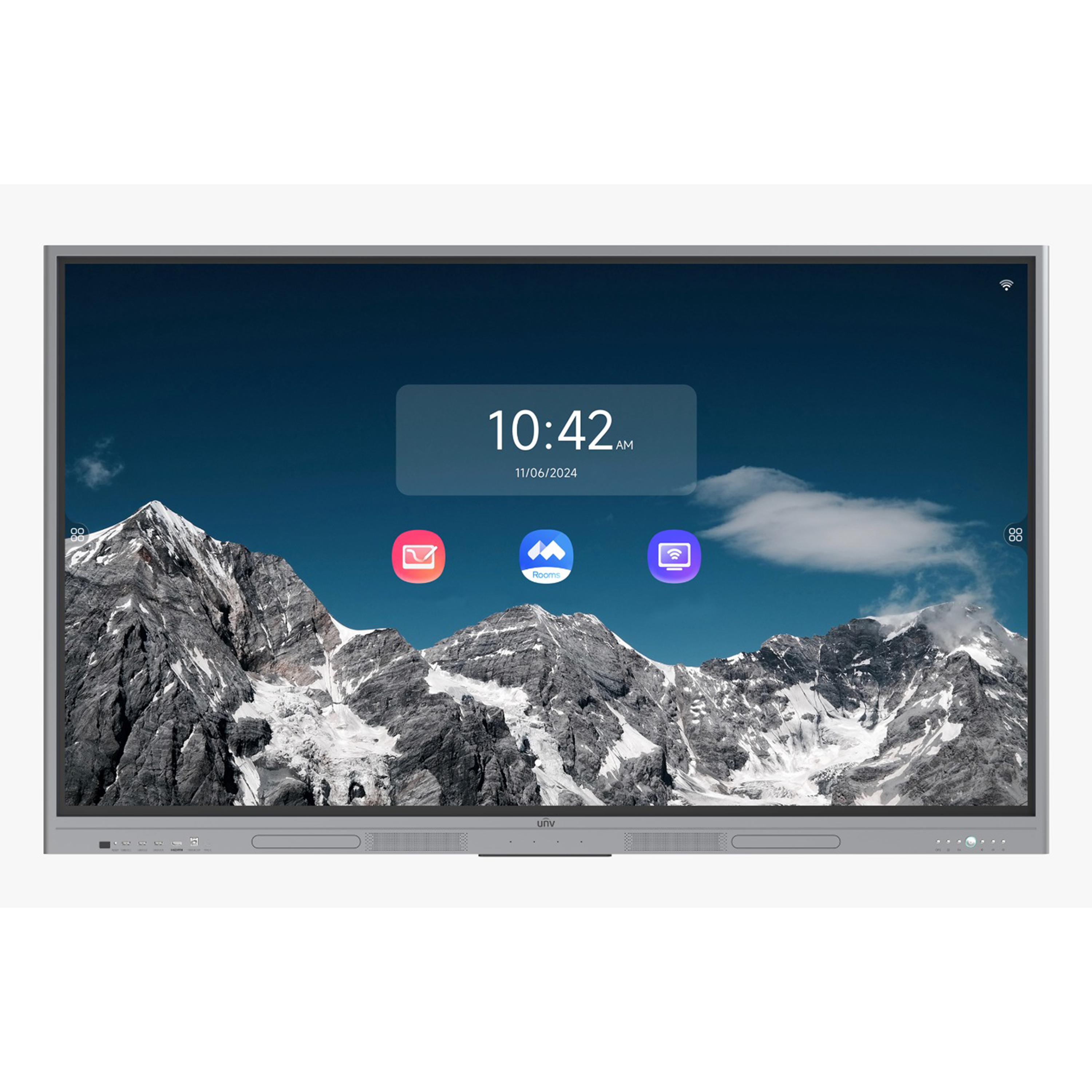

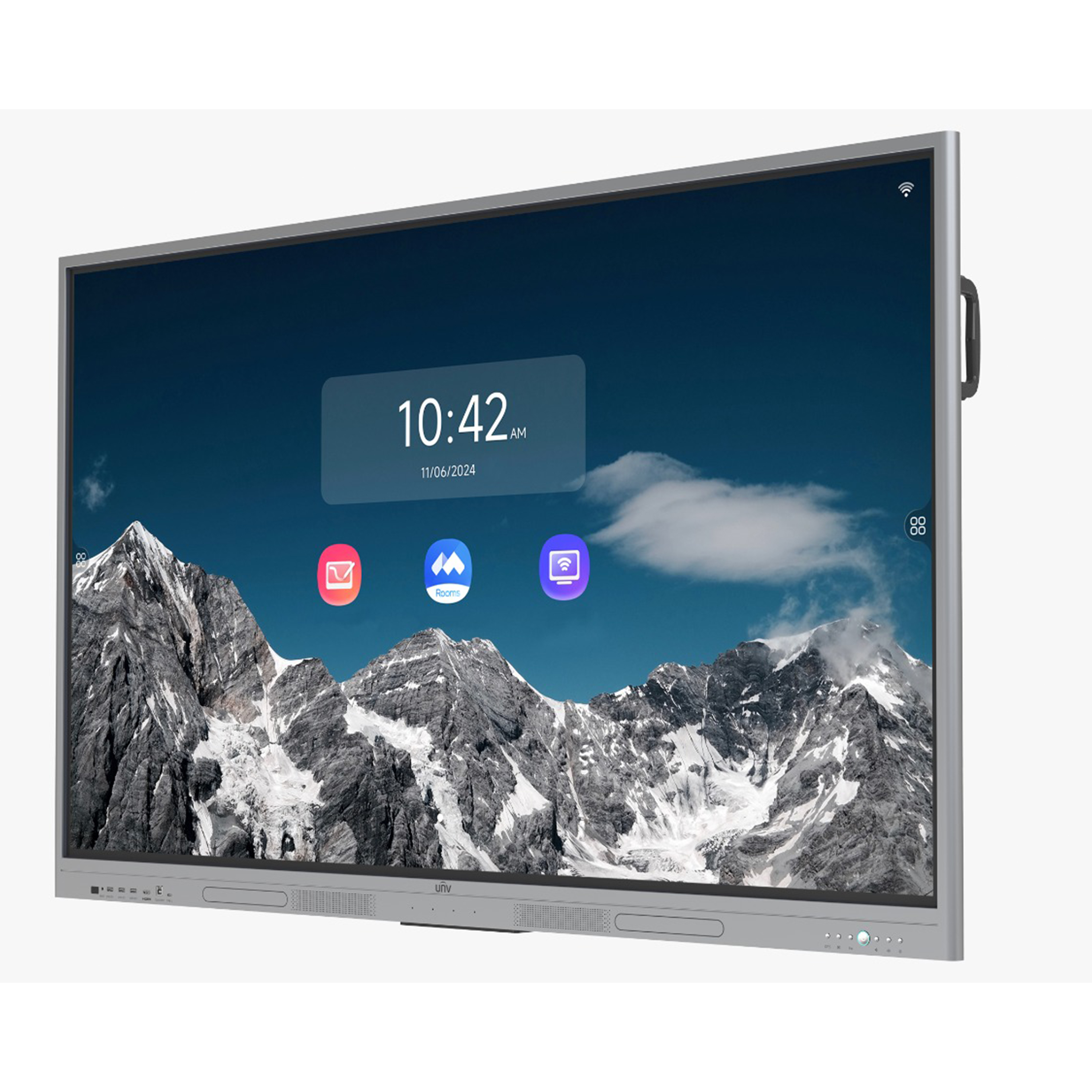

UNIVIEW MW3586-U-C 86'' Smart Interactive Display

Backlight

DLED backlight

Panel size

86 inches

Resolution

3840*2160

Brightness (cd/m²)

350

Contrast Ratio

1200:1

Response Time (ms)

8

Color Support

1.07 billion colors

Viewing Angle (H/V)

178°/178°

CPU

Amlogic T982 4*A55 and Mali G52 GPU

CPU Frequency

1.9GHz

RAM/ROM

DDR4: 4GB eMMC: 32GB

System Compatibility

Android 11.0

Touch Control

Contactless IR sensor, supports 20-point touch

Touch Precision (mm)

±1

Recognizable Object

5 points, 2mm

Glass

4mm tempered glass, level 7 on Mohs hardness scale, anti-glare

Touch Response Time (ms)

≤10

Touchscreen Input

Opaque objects (e.g. fingers, pens)

Video Input

3*HDMI IN(4K)、1*VGA IN、1*AV IN、1*YPbPr IN、1*DP IN

Video Output

1*AV OUT、1*HDMI OUT(4K)

Audio Input

1*MIC_IN

Audio Output

1*EARPHONE、1*coaxial audio output interface(COAX)

Other Interfaces

1*RS232、3*front USB 3.0、1*on-board USB 2.0、1*on-board USB 3.0、2*TOUCH USB、1*Type-C、1*TF CARD

Network

1*LAN OUT、1*LAN IN

Speaker

Left channel : 1*treble (5W) + 1*bass (15W)

Right channel : 1*treble (5W) + 1*bass (15W)

WiFi Configuration

Wi-Fi 5+Wi-Fi 6, supports 5G/2.4G

WiFi Performance

30m² coverage, 20m transmission distance in open space

Bluetooth Version

5.0

Bluetooth Performance

12m transmission distance in open space

Multi-Language

24 (Simplified Chinese, Traditional Chinese, English, Japanese, Arabic, French, Spanish, Portuguese, German, Italian, Dutch, Polish, Korean, Catalan, Galician, Vietnamese, Bulgarian, Kazakh, Russian, Ukrainian, Thai, Uzbek, Hungarian, Croatian)

Wall mount hole (mm)

800*400

Wall mount screw

4-M8 screw hole

Power Supply

AC 100 to 240V, 50/60Hz

Overall Power Consumption （W）

342.2 (without OPS)

Standby Power Consumption （W）

＜0.5

Product Dimensions （W*H*D）（mm）

1967*1173*89

Package Dimensions （W*H*D）（mm）

2117*1336*247

Weight（Kg）

Net weight: 68.0

Gross weight: 82.0

Operating Temperature

0°C to 50°C

Operating Humidity

10% to 90% RH, non-condensing

Storage temperature

-20°C to 60°C

Storage humidity

0% to 95% RH, non-condensing

Accessories Included

1*power cable、2*touch pen、1*quick guide、1*IR remote controller、1* wall mounting bracket
